1394W

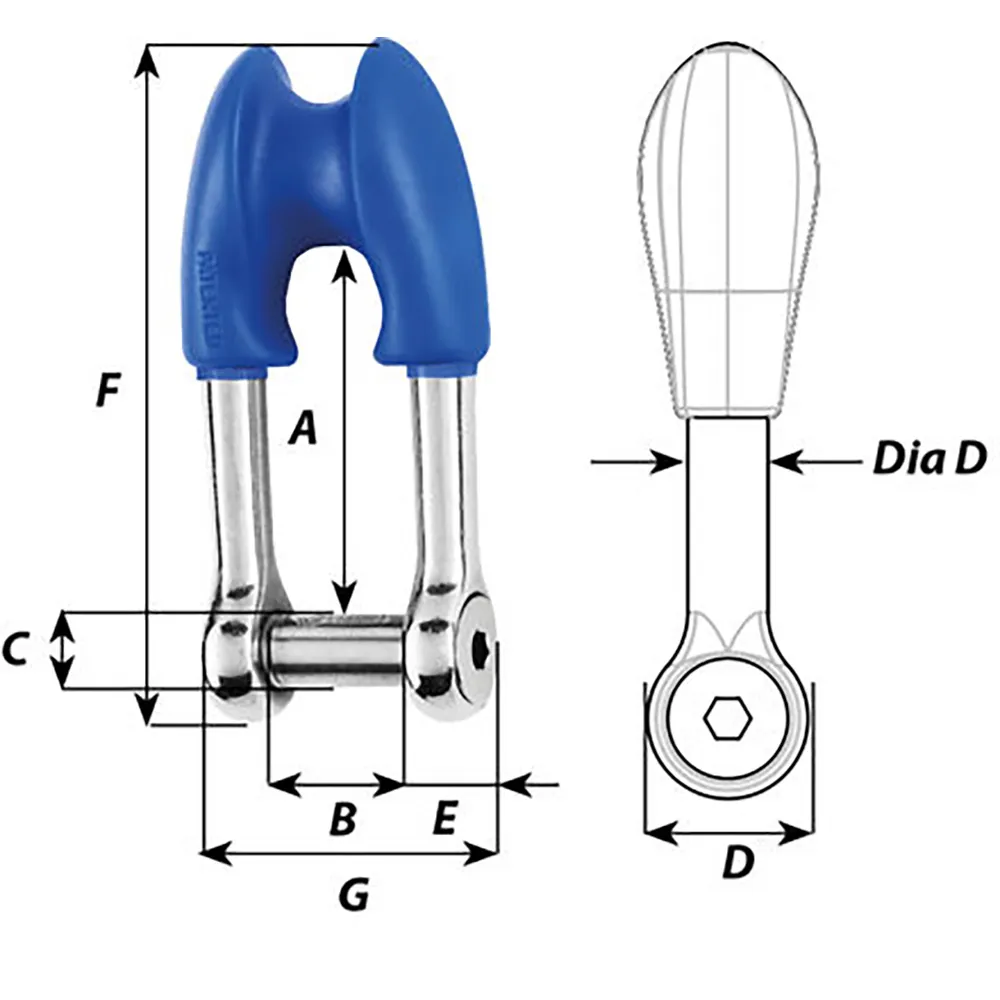

<p><strong>Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"</strong></p><p><strong>Features:</strong></p><ul><li>Thimble shackle with allen head pin forged in grade 316L stainless steel</li><li>Allows to spliced a rope without adding and additional thimble</li><li>With the captive pin, no risk to lose the pin</li><li>Outstanding working and breaking loads</li></ul><p><strong>Applications:</strong></p><ul><li>Mainsheet halyards</li><li>Max rope size: 12 mm</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316 stainless steel grade</li><li>Working load: (lb) 2200 / (kg) 1000&nbsp;</li><li>Breaking load: (lb) 6610 / (kg) 3000&nbsp;</li><li>Weight: (lb) 0.168 / (g) 76&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 1 39/64" / (mm) 41&nbsp;</li><li>B: (inch) 5/8" / (mm) 16&nbsp;</li><li>C: (inch) 5/16" / (mm) 8&nbsp;</li><li>D: (inch) 5/8" / (mm) 16&nbsp;</li><li>D diameter: (inch) 5/16" / (mm) 8&nbsp;</li><li>E: (inch) 9/32" / (mm) 7&nbsp;</li><li>F: (inch) 2 63/64" / (mm) 76&nbsp;</li><li>G: (inch) 1 19/64" / (mm) 33&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
