11209W

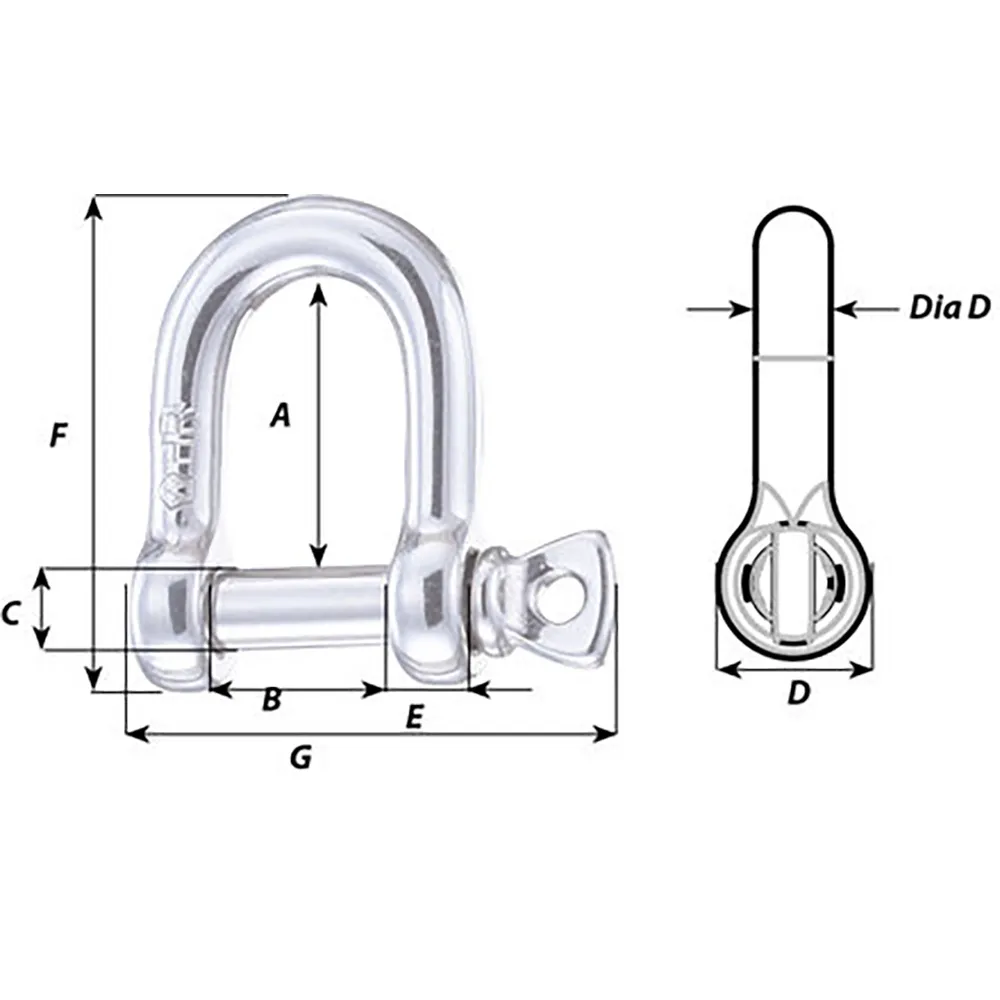

<p><strong>HR D Shackle - 20mm Diameter - 25/32"</strong></p><p><strong>Features:</strong></p><ul><li>Forged D shackle in HR stainless steel grade (17,4 PH)</li><li>Outstanding working and breaking load</li><li>An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel</li><li>WLL: only for industrial applications (lifting i.e&hellip;)</li><li>CE marking</li></ul><p><strong>Applications:</strong></p><ul><li>Applications requesting high loads</li><li>Standard applications of the shackle</li><li>Attachment applications: blocks, head &hellip;</li><li>Do not use it for mooring applications</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: HR 17.4 PH stainless steel grade</li><li>Working load: (lb) 19400 / (kg) 8800&nbsp;</li><li>WLL: (lb) 12340 / (kg) 5600&nbsp;</li><li>Breaking load: (lb) 61720 / (kg) 28000&nbsp;</li><li>Weight: (lb) 1.896 / (g) 860&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 2 3/4" / (mm) 70&nbsp;</li><li>B: (inch) 1 37/64" / (mm) 40&nbsp;</li><li>D diameter: (inch) 25/32" / (mm) 20&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li><li>High Resistance (HR)</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
