06564

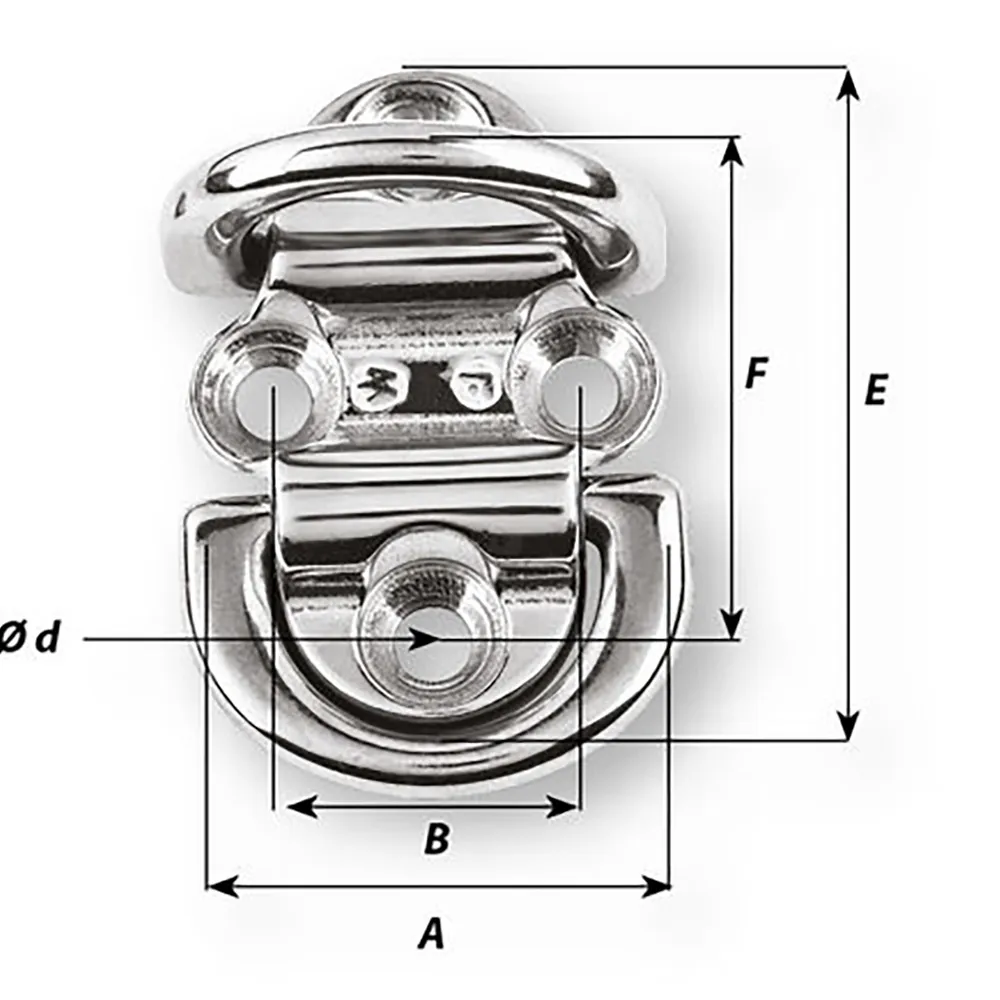

<p><strong>Double Folding Pad Eye - 6mm Diameter - 15/64"</strong></p><p><strong>Features:</strong></p><ul><li>Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load</li><li>Perfect solution attachment (stay, blocks, jib tack point)</li><li>Possibility to attach several stays</li><li>Modern and optimized design to suit the aesthetics of modern boats</li><li>They can be folded down to minimize the risk of injuries</li><li>The silicon pad eliminates noise and unpleasant vibrations</li></ul><p><strong>Applications:</strong></p><ul><li>For any fastening/attachment application</li><li>Allows to attach several shrouds</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316L stainless steel grade</li><li>Working load: (lb) 3170 / (kg) 1440</li><li>Breaking load; (lb) 5510 / (kg) 2500&nbsp;</li><li>Weight: (lb) 0.278 / (g) 126&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 1 49/64" / (mm) 45&nbsp;</li><li>B: (inch) 1 1/16" / (mm) 27&nbsp;</li><li>C: (inch) 35/64" / (mm) 14&nbsp;</li><li>d diameter: (inch) 1/4" / (mm) 6.4&nbsp;</li><li>D diameter: (inch) 15/64" / (mm) 6&nbsp;</li><li>E: (inch) 2 61/64" / (mm) 75&nbsp;</li><li>F: (inch) 2 21/64" / mm) 59&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
