3002

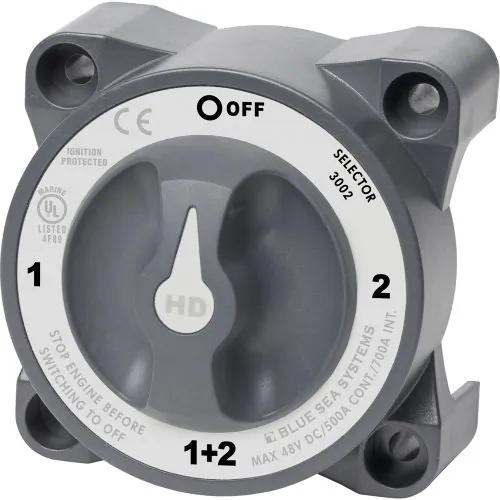

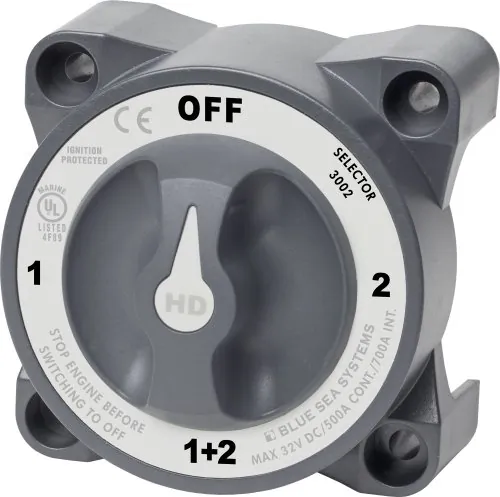

<p><b>Blue Sea 3000 500A Battery Selector 4 Position Swiitch</b></p>Model: 3002-BSS<br><ul class="wtul"><li>Tin-plated copper studs for maximum conductivity and corrosion resistance</li><li>Accepts up to 4/0 AWG battery cables</li><li>Studs accepts 1/2" (M12) ring terminals</li><li>7/8" (22mm) stud length accepts multiple cable terminals</li><li>Blue Sea Systems one-piece terminal stud design never loosens over time</li><li>Fits most Perko and Guest low amperage battery switch hole patterns</li><li>Case design allows surface, rear, or front panel mounting options</li><li>Tactile indicator conveys knob position by feel</li><li>Waterproof &#8212; rated IP66 from water projected in powerful jets</li><li>Ignition protected&#8212;safe for installation aboard gasoline powered boats</li><li>Make-before-break contact design allows switching between battery banks without power interruption</li></ul><b>Specifications</b><br><table style='border-collapse: collapse' width='95%' border='1'><tr><td width='175px'>Switch Type</td><td>Selector 4 Position</td></tr><tr><td width='175px'>Color</td><td>Grey</td></tr><tr><td width='175px'>Switch Positions</td><td>4</td></tr><tr><td width='175px'>Battery Combine</td><td>Yes</td></tr><tr><td width='175px'>Alternator Field Disconnect</td><td>No</td></tr><tr><td width='175px'>Maximum Voltage</td><td>32V DC</td></tr><tr><td width='175px'>Terminal Stud Torque</td><td>220 in-lb (24.86 Nm)</td></tr><tr><td width='175px'>Continuous Rating</td><td>500A</td></tr><tr><td width='175px'>Intermittent Rating</td><td>700A (5 min)</td></tr><tr><td width='175px'>Cranking Rating 30 sec</td><td>1600A</td></tr><tr><td width='175px'>Battery Inputs</td><td>2</td></tr><tr><td width='175px'>Cable Clearance For 4/0 AWG Cables</td><td>1.10in (27.94 mm)</td></tr><tr><td width='175px'>Cable Quantity to Meet Ratings</td><td>Two Cables / Terminal</td></tr><tr><td width='175px'>Cable Size to Meet Ratings</td><td>4/0 AWG (120mm )</td></tr><tr><td width='175px'>Mounting Holes</td><td>Accept 1/4" (M6) Screw</td></tr><tr><td width='175px'>Terminal Stud Size</td><td>1/2" (M12)</td></tr></table>
