01432

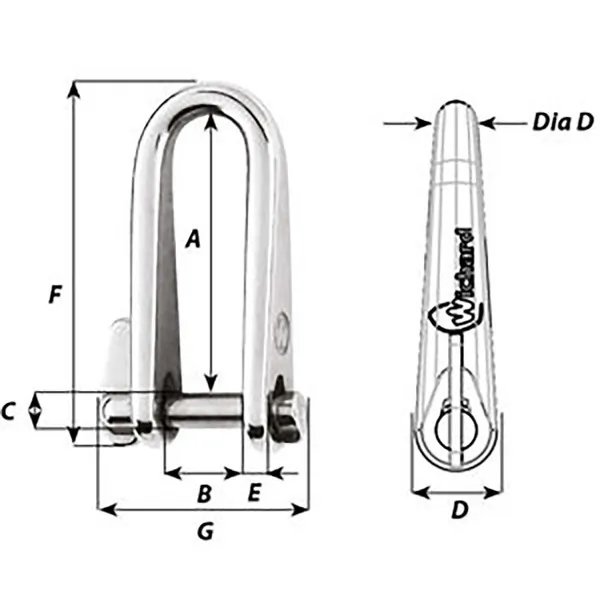

<p><strong>Key Pin Shackle - Diameter 5mm - 3/16"</strong></p><p><strong>Features:</strong></p><ul><li>Key pin shackle forged in grade 316L stainless steel</li><li>Opening and closing is done simply by rotating the pin half a turn</li><li>No risk to lose the pin as it remains attached</li><li>Outstanding working and breaking loads</li></ul><p><strong>Applications:</strong></p><ul><li>Perfect product for halyards or applications requiring to open/close the shackle often</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 880</li><li>Breaking load (lb) 2200</li><li>Weight (lb) 0.068</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-29/64"</li><li>B (inch) 33/64"</li><li>C (inch) 13/64"</li><li>D (inch) 7/16"</li><li>D diameter (inch) 13/64"</li><li>E (inch) 5/32"</li><li>F (inch) 1-59/64"</li><li>G (inch) 1-7/32"</li></ul> <!--- cis2:m2hqmpZo --->
