01412 Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16

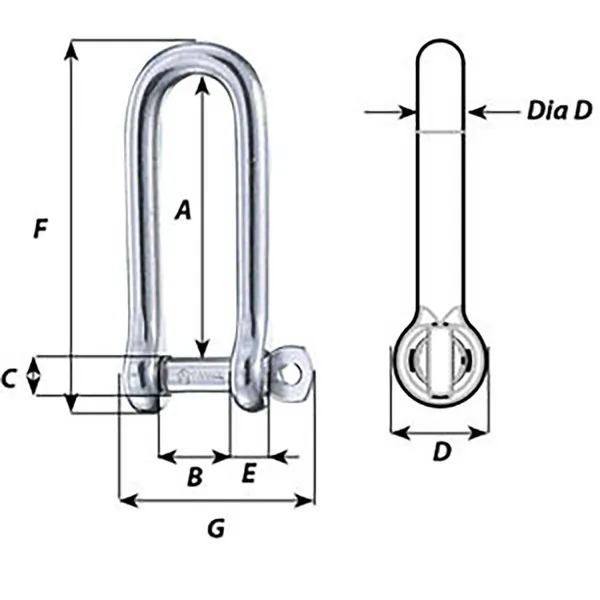

<p><strong>Captive Pin Long D Shackle - Diameter 5mm - 3/16"</strong></p><p><strong>Features:</strong></p><ul><li>Captive pin long "D" shackle forged in grade 316L stainless steel</li><li>The pin is connected to the body at all times even when opened</li><li>The pin is locked into one of the indentations</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li></ul><p><strong>Applications:</strong></p><ul><li>Standard applications of shackle requiring more length</li><li>Attachment applications: blocks, head...</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 1050</li><li>WLL (lb) 660</li><li>Breaking load (lb) 3300</li><li>Weight (lb) 0.053</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-17/32"</li><li>B (inch) 25/64"</li><li>C (inch) 15/64"</li><li>D (inch) 7/16"</li><li>D diameter (inch) 13/64"</li><li>E (inch) 13/64"</li><li>F (inch) 2-3/64"</li><li>G (inch) 1-1/16"</li></ul> <!--- cis2:m2hqmpZo --->
