01212 Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16

Wichard Marine logo Wichard Marine

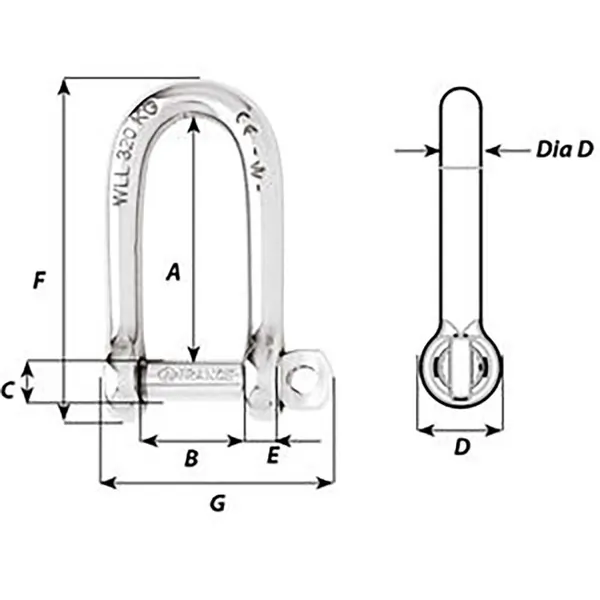

<p><strong>Self-Locking Long D Shackle - Diameter 5mm - 3/16"</strong></p><p><strong>Features:</strong></p><ul><li>Self-locking long shackle forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications</li><li>CE Marking and batch number</li></ul><p><strong>Applications:</strong></p><ul><li>Standard applications of shackle requiring more length</li><li>Attachment applications: blocks, head...</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 880</li><li>WLL (lb) 440</li><li>Breaking load (lb) 2200</li><li>Weight (lb) 0.037</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-9/64"</li><li>B (inch) 25/64"</li><li>C (inch) 13/64"</li><li>D (inch) 25/64"</li><li>D diameter (inch) 13/64"</li><li>E (inch) 5/32"</li><li>F (inch) 1-39/64"</li><li>G (inch) 1-1/32"</li></ul> <!--- cis2:m2hqmpZo --->
Specifications
detailsSelf-Locking Long D Shackle - Diameter 5mm - 3/16"Features:Self-locking long shackle forged in grade 316L stainless steelThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsWLL: only for industrial applicationsCE Marking and batch numberApplications:Standard applications of shackle requiring more lengthAttachment applications: blocks, head...Specifications:Materials 316 stainless steel gradeWorking load (lb) 880WLL (lb) 440Breaking load (lb) 2200Weight (lb) 0.037Dimensions (see 2nd image):A (inch) 1-9/64"B (inch) 25/64"C (inch) 13/64"D (inch) 25/64"D diameter (inch) 13/64"E (inch) 5/32"F (inch) 1-39/64"G (inch) 1-1/32"
1
Seller
2
In Stock
$25.44
From
Conditions available New
Free members see each seller's price & contact details
1 seller · 2 in stock Sign up free

Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Seller 1 — sign up to see New 2 Sign up to see Live feed
