R5
Tecnoseal
Tecnoseal R5 Rudder Anode - Zinc - 5 Diameter x 7/8 Thickness

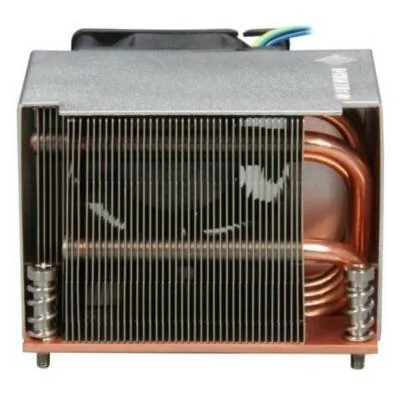

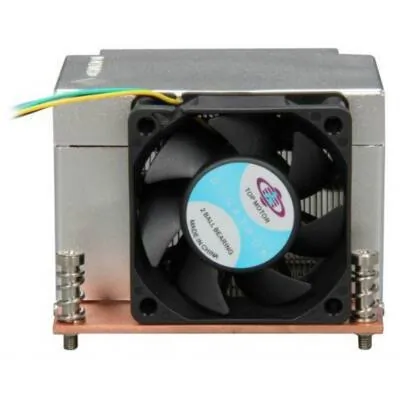

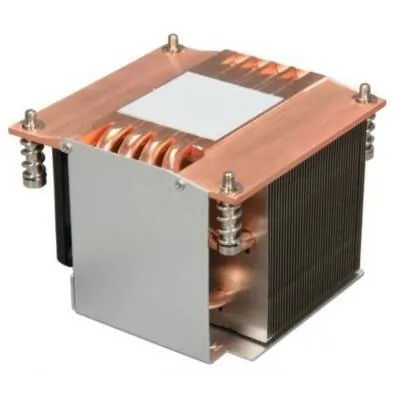

Description: The Dynatron R5 2U Server Active CPU Cooler is designed for Intel Sandy Bridge EP/EX Processors up to 150 Watts. An H.C.C. (Heatpipes Contact CPU) copper base works in tandem with aluminum fins with 6mm heatpipes embedded to quickly transfer the heat from CPU while a 60mm dual-ball bearing PWM fan delivers quiet, efficient airflow for your cooling needs. The standard server board bolt-thru mounting mechanism and pre-applied thermal grease make this cooler easy to install as well.; Features: INTELLIGENT H.C.C; The Dynatron R5 2U Server Active CPU Cooler features a copper base that is in direct contact with the CPU to enhance heat conduction.; 150-WATT COOLING COLUTION; Four 6mm heatpipes integrated with H.C.C (Heatpipes Contact CPU) copper base and high-density aluminum fins, plus an active side 2 ball bearing PWM fan, deliver up to 150 watts of cooling capability for Intel Sandy Bridge EP/EX Processors.; ROHS COMPLIANT; The Dynatron R5 2U Server Active CPU Cooler is ful
Specifications
| details | CPU SupportIntel Sandy Bridge EP/EX Processors up to 150 Watts Solution2UUp ServerMaterialH.C.C.(Heatpipes Contact CPU) Copper Base and Aluminum Fins with Heatpipes embedded Fan Dimension60 x 60 x 25 mm SpeedAt Duty Cycle 020%: 1600 RPMAt Duty Cycle 50%: 4000 RPMAt Duty Cycle 100%: 8000 RPM Bearing2 Ball Bearing Rated Voltage12 V PowerAt Duty Cycle 020%: 0.60 WAt Duty Cycle 50%: 1.8 WAt Duty Cycle 100%: 7.2 W Air FlowAt Duty Cycle 020%: 8.75 CFMAt Duty Cycle 50%: 21.88 CFMAt Duty Cycle 100%: 43.75CFM Noise LevelAt Duty Cycle 020%: 16.85 dBAAt Duty Cycle 50%: 35.94 dBAAt Duty Cycle 100%: 51.00 dBA Air PressureAt Duty Cycle 020%: 0.70 mm-H2OAt Duty Cycle 50%: 4.42 mm-H2OAt Duty Cycle 100%: 17.70 mm-H2O Lead Wire Pin Out Pin1-Black (-)Pin2-Yellow (+)Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM) Item Dimension (L"xW"xH"): 3.66 x 3.66 x 2.64 Weight:1.55 lb Warranty Information: 1 Year |
Available From 1 Seller
| Seller | Condition | Qty | Price | Location | Updated | Action | |
|---|---|---|---|---|---|---|---|
|
Aztek Computers
VAR |
Refurbished | 2 | $48.71 | Frisco, TX | Mar 18 |
