CW47015
Image 1 Image 2

CW47015

Maretron

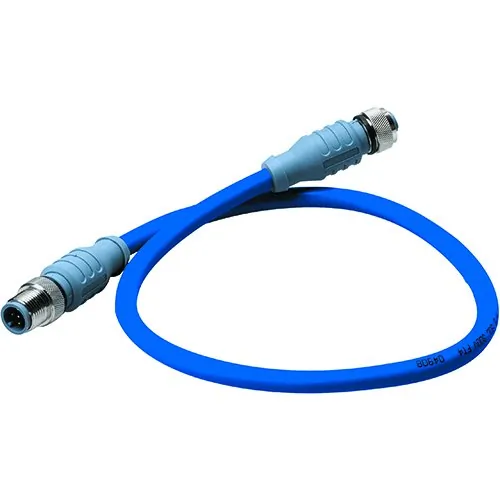

Maretron 5 Meter Blue Double-Ended Cordset

<p><b>Maretron 5 Meter Double-Ended Cordset - Blue</b></p><p>This durable cordset is designed for reliable connections in marine applications. With high-quality materials and construction, it ensures optimal performance and safety.</p><h4>Mechanical Specifications:</h4><ul><li>Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray</li><li>Molded Body Material/Color: Thermoplastic PUR/Blue-Gray</li><li>Contact Material/Plating: Brass/Gold</li><li>Coupling Nut Material/Plating: Brass/Nickel</li><li>Connector Outside Diameter: 0.59 inches</li></ul><h4>Electrical Specifications:</h4><ul><li>Current Rating: 4.0 Amps</li><li>Voltage Rating: 250 V</li></ul><h4>Cable Specifications:</h4><ul><li>Outer Jacket Material/Color: PVC/Gray</li><li>Conductor Insulation Material: PE (data pair), PVC (power pair)</li><li>Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire</li><li>Shielding: Foil (Overall), Foil (Power Pair), Foil (Data Pair)</li></ul><h4>Environmental Ratings:</h4><ul><li>Protection Class: IEC IP68, NEMA 1, 3, 4, 6P</li><li>Temperature Rating: -40°C to 80°C (-40°F to 176°F)</li></ul><h4>Approvals:</h4><ul><li>(Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V</li><li>(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4</li><li>NMEA: NMEA 2000 Approved</li><li>IEC: IEC 61162-3</li></ul>
Specifications
detailsReliable double-ended design for versatile connectionsIP68 rating for exceptional water and dust protectionHigh-temperature and UV-resistant materialsGold-plated contacts for optimal conductivityLightweight and durable for marine environments
1
Seller
2
In Stock
$64.29
From

Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Aztek Computers
VAR
Refurbished 2 $64.29 Frisco, TX Mar 18
