01494

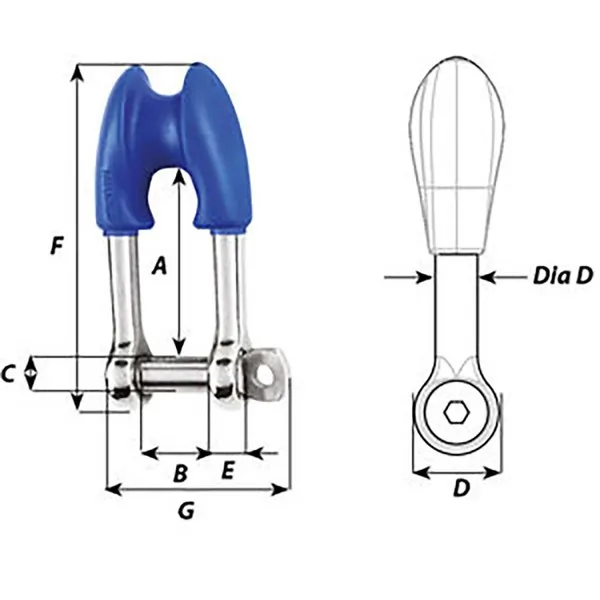

<p><strong>Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"</strong></p><p><strong>Features:</strong></p><ul><li>Thimble shackle with captive pin forged in grade 316L stainless steel</li><li>Allows to spliced a rope without adding an additional thimble</li><li>With the captive pin, no risk to lose the pin</li><li>Outstanding working and breaking loads</li></ul><p><strong>Applications:</strong></p><ul><li>Mainsheet halyards</li><li>Max rope size: 12mm</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 2200</li><li>Breaking load (lb) 6610</li><li>Weight (lb) 0.172</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-39/64"</li><li>B (inch) 5/8"</li><li>C (inch) 5/16"</li><li>D (inch) 5/8"</li><li>D diameter (inch) 5/16"</li><li>E (inch) 9/32"</li><li>F (inch) 2-63/64"</li><li>G (inch) 1-21/32"</li></ul> <!--- cis2:m2hqmpZo --->
