01262

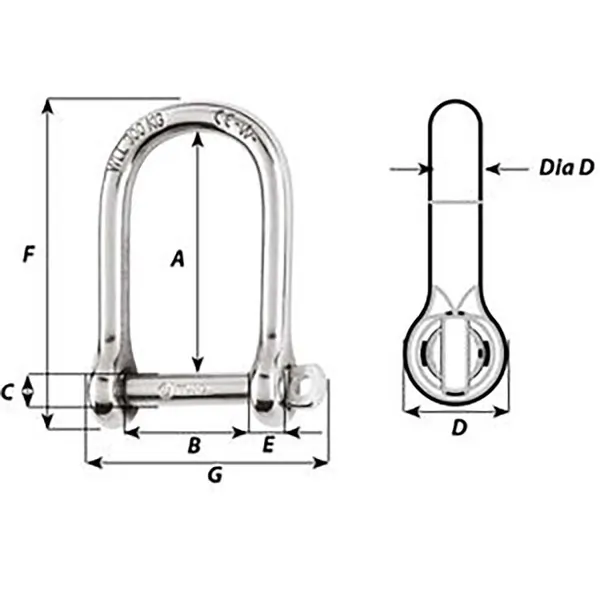

<p><strong>Self-Locking Large Shackle - Diameter 5mm - 3/16"</strong></p><p><strong>Features:&nbsp;</strong></p><ul><li>Self-locking large shackle forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications (lifting i.e&hellip;)</li><li>CE marking and batch number</li></ul><p><strong>Applications:</strong></p><ul><li>For applications where a large opening shackle is required</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 550</li><li>WLL (lb) 480</li><li>Breaking load (lb) 2420</li><li>Weight (lb) 0.035</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-27/64"</li><li>B (inch) 25/32"</li><li>C (inch) 13/64"</li><li>D (inch) 7/16"</li><li>D diameter (inch) 13/64"</li><li>E (inch) 13/64"</li><li>F (inch) 1-57/64"</li><li>G (inch) 1-3/8"</li></ul> <!--- cis2:m2hqmpZo --->
