01242

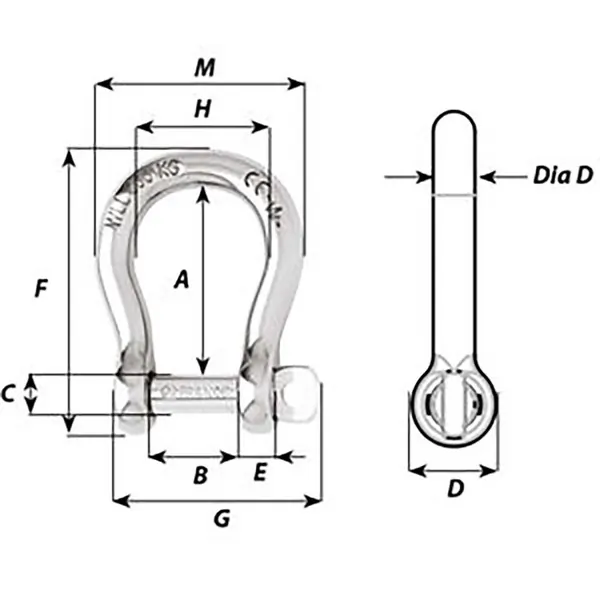

<p><strong>Self-Locking Bow Shackle - Diameter 5mm - 3/16"</strong></p><p><strong>Features:</strong></p><ul><li>Self-locking bow shackle forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications (lifting i.e&hellip;)</li><li>CE marking and batch number</li></ul><p><strong>Applications:</strong></p><ul><li>To be used when ample room is required</li><li>Possibility to attach several lines or cables</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 880</li><li>WLL (lb) 440</li><li>Breaking load (lb) 2200</li><li>Weight (lb) 0.037</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 29/32"</li><li>B (inch) 25/64"</li><li>C (inch) 13/64"</li><li>D (inch) 25/64"</li><li>D diameter (inch) 13/64"</li><li>E (inch) 5/32"</li><li>M (inch) 63/64"</li></ul> <!--- cis2:m2hqmpZo --->
