PDUMH15
Eaton
EATON TRIPP LITE SERIES 1.4KW SINGLE-PHASE LOCAL METERED PDU, 120V OUTLETS (13 5

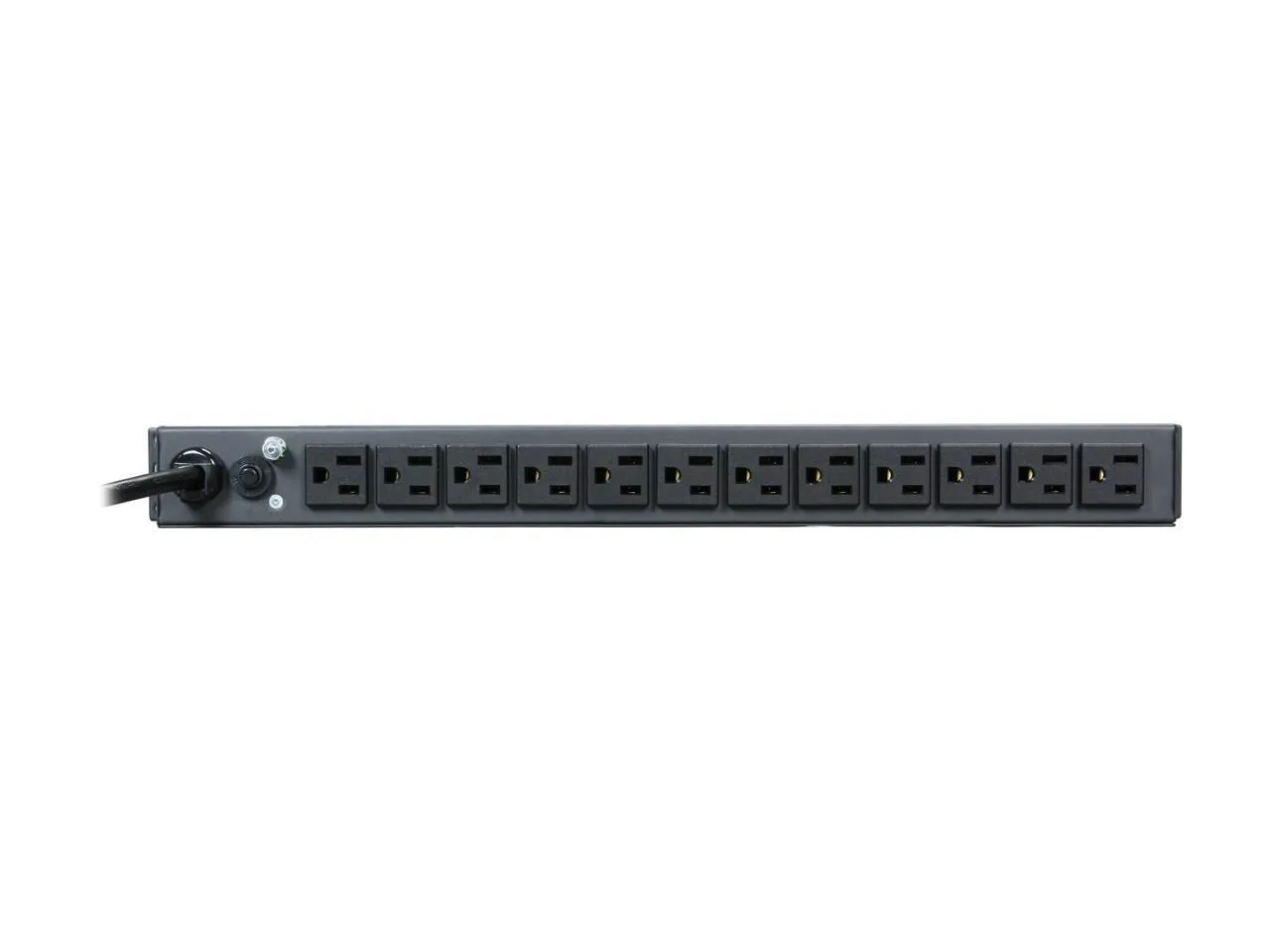

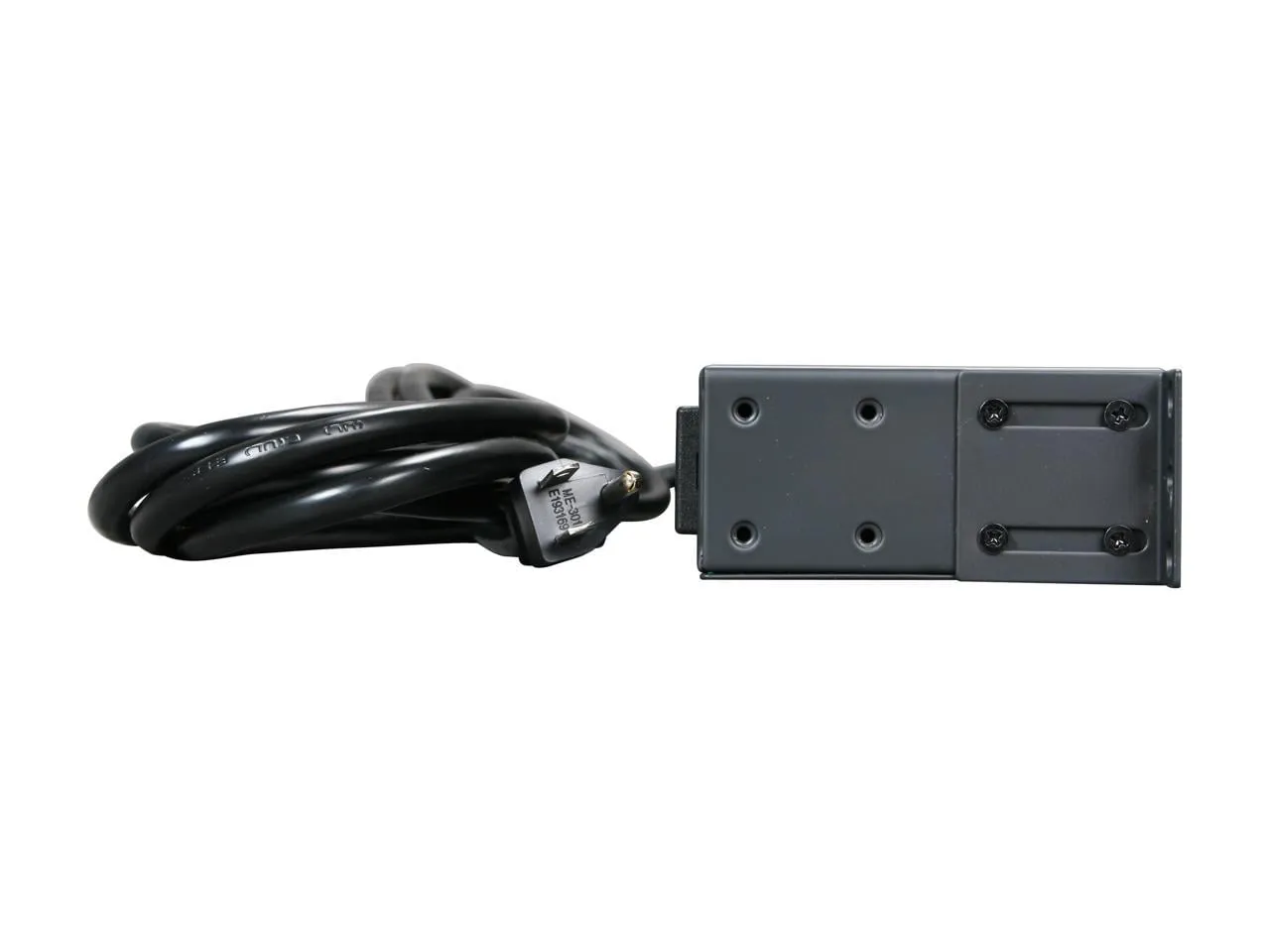

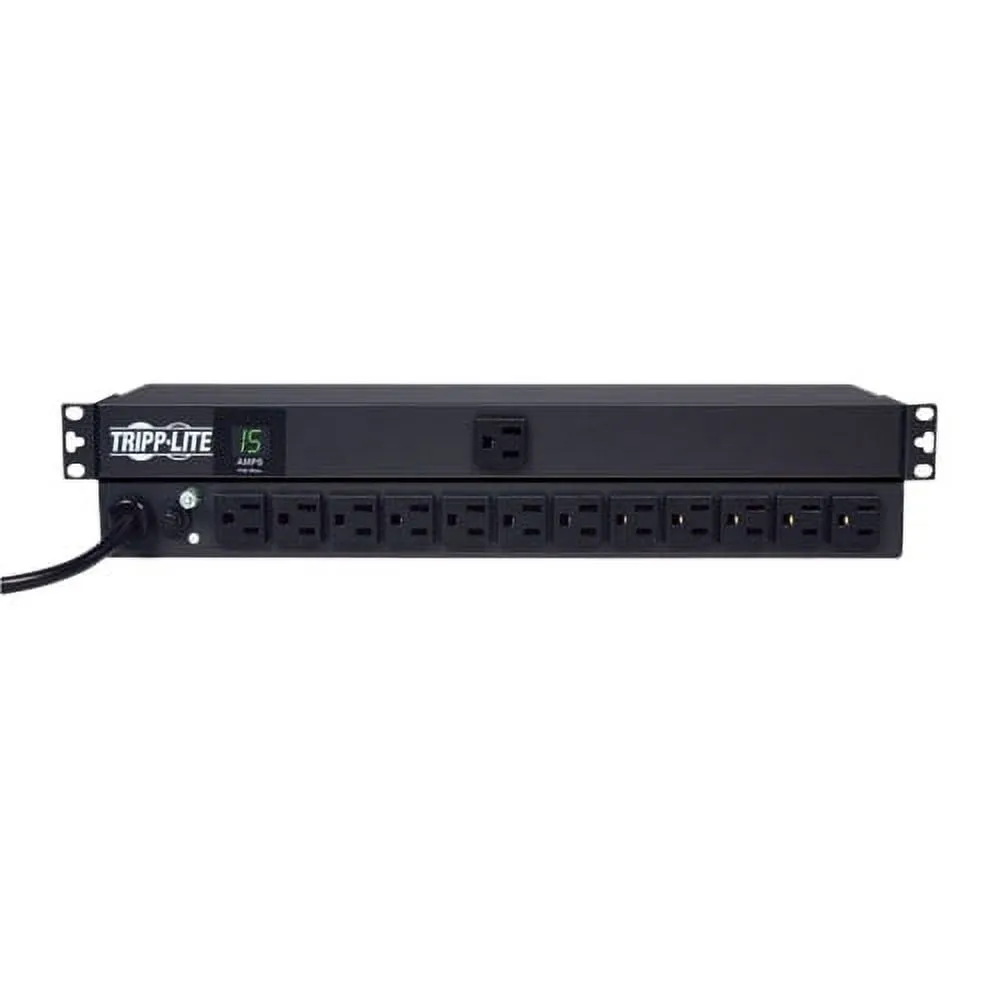

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures.
Specifications
| details | - 120V 15A Metered rackmount AC power distribution unit with 15 amp capacity and 13 AC receptacles - Front panel digital current montoring display shows power consumption of connected equipment - Versital all-metal rackmount cabinet with detachable mounting flanges allows wall-mount, under-counter, and 19-inch rackmount mounting in both 1U and zero U formats - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - 13 NEMA 5-15R output receptacles accept common NEMA5-15P equipment plugs - 15 foot AC power cord with NEMA5-15P plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 15 amp electrical capacity with circuit breaker - 120 VAC, 50/60 Hz electrical compatibility System overview - 1U multi-mount PDU with digital current monitoring Voltage compatibility - 120V AC Frequency compatibility - 50 / 60 Hz Output nominal voltage - 120V AC Outlet quantity / type - 13 NEMA 5-15R (1 front / 12 rear) Overload protection - 15A circuit breaker Maximum input amps - 15A Input connection type - NEMA 5-15P Input cord length - 15 feet Front panel LEDs - Digital LED current monitor display Shipping weight (lbs) - 5.2 |
Available From 1 Seller
| Seller | Condition | Qty | Price | Location | Updated | Action | |
|---|---|---|---|---|---|---|---|
|
Aztek Computers
VAR |
Refurbished | 12 | $144.69 | Frisco, TX | Mar 18 |
